L5-30P to 2x L5-30R Splitter Power Cords

$122.38

NEMA L5-30P to L5-30R Y Splitter Cables

SKU: IBX-2X8630-XX

 L5-30P to L5-30R Splitter Cord, 2 x L5-30R Legs, 30 Amps, 125V, 10/3 SJT

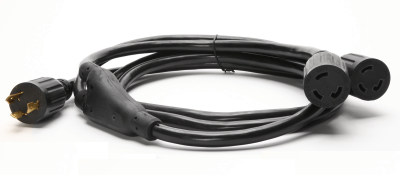

L5-30P to 2 x L5-30R Splitter Cord * L5-30P to L5-30R X 2 power cords

* Split a L5-30P plug out to 2x L5-30R branches

* Custom lengths available

* Rated for 30A and 125V

* 10 AWG, 3 Wire SJT cable jacket

UL Listed, RoHS certified

Call 1-800-590-8610 for qty. discounts


Specifications:

Plug Type      L5-30P
Connector Type L5-30R X 2
Length 10 Foot Main Branch + 2 Foot Legs (Custom Lengths Available)
Amperage 30 Amps
Voltage                               125V
Number of Conductors 3
Wire Gauge 10 AWG
Jacket Type SJT
Temperature Rating
105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity
Certifications cUL, UL Listed

L5-30 Splitter Power Cord Tech Notes: Splits a L5-30P male plug out to two L5-30R female connectors



Applications: Connect server and network equipment to a rack PDU in a rack enclosure

 Related Terms: L5-30R to L5-30R Splitter cable,  NEMA L5-30P to IEC L5-30R Splitter power cord, Locking Splitter cords

Part Number: IBX-2X8630-XX (XX = Length)

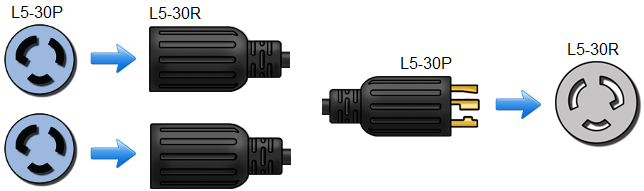

Application Shots: L5-30P to 2 x L5-30R
