NEMA 15 Amp L5-20P to IEC 60320 C13 Power Cables
If you have any issues while placing your order, please give us a call at 1-800-590-8610
L5-20P to C13 Power Cords, 15A, 125V, 14/3 SJT
$0.00

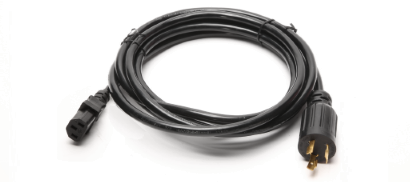

NEMA L5-20P to IEC C13 Power Cords – 15A, 125V, 14/3 AWG Cable
.png) |
* L5-20P to C13 power cords
* Molded Plug and Connector * Available in multiple lengths * Rated for 15A and 125V * 14 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | L5-20P |
| Connector Type | C13 |
| Length | 3, 6, 10, 15 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |
.png)
Tech Notes: UL Listed for the U.S. and Canada. Molded on both ends.
Applications: Extend a NEMA L5-20P plug up to 15 Feet
**This item is custom built to order.
Related Terms: C13 to L5-20P cable, NEMA L5-20 to IEC C13 cord, l520p to c13, Locking L5-20 power cord
Part Number: IBX-4931-X (X = Length)

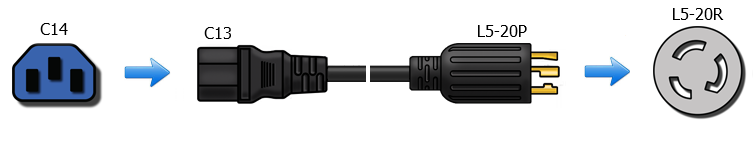

Application Shots: .png)
